485W 182mm Monocrystalline Silicon PV Module Mono Si Solar Cells

Brand Name : LS

Model Number : PB485

Certification : IEC 61215/IEC 61730/ISO 9001/ISO 14001/ISO 45001

Place of Origin : China

MOQ : 806 pcs

Price : consult prices online

Payment Terms : T/T

Packaging Details : consult online

Power Range : 485W ~ 495W

Maximum Efficiency : 20.85%

Open Circuit Voltage (Voc) : 45.98V

Short Circuit Current (Isc) : 13.67A

Module Dimension : 2094×1134×35mm

Weight : 25.1kg (35mm)/23.8kg (30mm)

Temperature Coefficient (Pmax) : -0.34%

Nominal Module Operating Temperature : 44±2℃

Contact Now

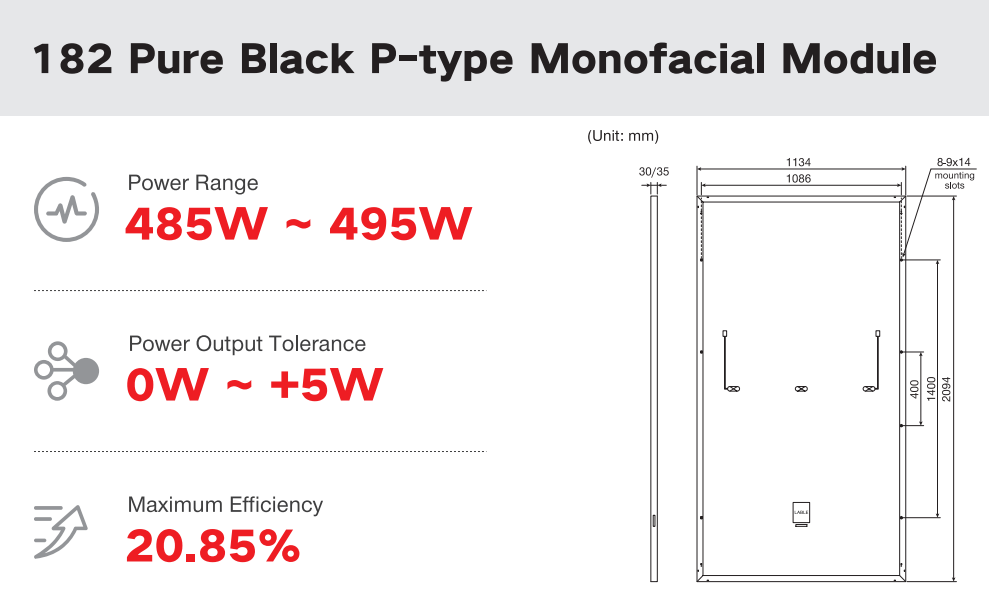

485W 182mm Monocrystalline Silicon Panels The Perfect Choice for Large-Scale Solar Farms

Product Description:

The 182 Pure Black P-type Monofacial Module is a premium solar panel designed for high-efficiency energy production. It features a power range of 485W to 495W with a maximum efficiency of 20.85%. The module is built with 182mm monocrystalline half cells, which provide superior performance even in low-light conditions. The panel's structure includes a highly transparent 3.2mm tempered glass with anti-reflective coating, ensuring maximum sunlight absorption. The anodized aluminum alloy frame, coupled with a black back sheet, not only enhances the panel's aesthetic appeal but also provides robust protection against environmental elements. The IP68 rated junction box guarantees long-term reliability, even in harsh weather conditions.

Electrical Performance Parameters \|STC
ModelType		485D(BPM) 66(182	490D(BPM) 66(182)		495D(BPM) 66/(182)
Nominal Max.Power	Pmax(W)	485	490		495
Max.Power Voltage	Vmp(V)	37.62	37.82		38.02
Max.Power Current	Imp(A)	12.90	12.96		13.02
Open Circuit Voltage	Voc(V)	45.58	45.78		45.98
Short Circuit Current	lsc(A)	13.57	13.62		13.67
Module Eficiency	(%)	20.42	20.64		20.85
PowerOutput Tolerance	(W)		0~+5W
STC:Irradiance 1000W/m²,CeI Temperature 25℃,Air Mass AM1.5. Power measurement tolerance ±3%.
Electrical Performance Parameters \|NMOT
Model Type		485D(BPM) 66(182)		490D(BPM) 66(182)	495D(BPM) 66(182)
Nominal Max.Power	Pmax(W)	365		370	375
Max.Power Voltage	Vmp(V)	34.64		34.84	35.04
Max.PowerCurrent	Imp(A)	10.54		10.62	10.71
Open Circuit Voltage	Voc(V)	42.93		42.98	43.03
Short Circuit Current	Isc(A)	10.72		10.92	11.12
·NMOT:Iradiance 800W/m²,Cell Temperature 20℃,Wind Speed 1m/s. ·Power measurement tolerance ±3%.

Structure Performance
Solar Cell Type		182mmMono-crystalline (Half Cell)
SolarCellArrangement		132pcs(6×22)
Module Dimension		2094×1134×35mm/30mm
Weight		25.1kg(35mm)/23.8kg(30mm)
Front Glass		3.2mm,highly transparent tempered glass with antreflective coating
Back Sheet		Black
Frame		Anodized Aluminum Alloy (Black)
Junction Box		IP68 rated
Cable		4mm²,portrait 28mm),landscape 1400mm(+ 1400mm (-) Length can be customized
Diode Quantity		3 pcs
Front side/Rear side		5400pa/2400pa
Connector		MC4 Compatible
Per Pallet		31pcs(35mm)/36pcs(30mm)
PerContainer(40'HQ)		682pcs(35mm)/792pcs(30mm)

Temperature Characteristics
Nominal Module OperatingTemperature					44±2℃
Temperature Coefficient (lsc)					+0.048%
Temperature Coefficient(Voc)					-0.26%
Temperature Coefficient(Pmax)					-0.34%

Maximum Parameters
Working Temperature					-40~+85℃
Maximum System Voltage					1500V DC
Nominal Maximum Fuse Current					25A

Application:

This module is ideal for residential and commercial rooftop installations where aesthetics and efficiency are paramount. The black-on-black design seamlessly blends with modern architecture, making it a preferred choice for installations in urban environments. Additionally, its high efficiency and reliable performance make it suitable for large-scale solar farms where maximizing energy output is critical.

Shipping Methods:

Supports global air and sea shipping.
