Smart and Compact Hybrid Inverters with Built-in MPPT Solar Charge Controller

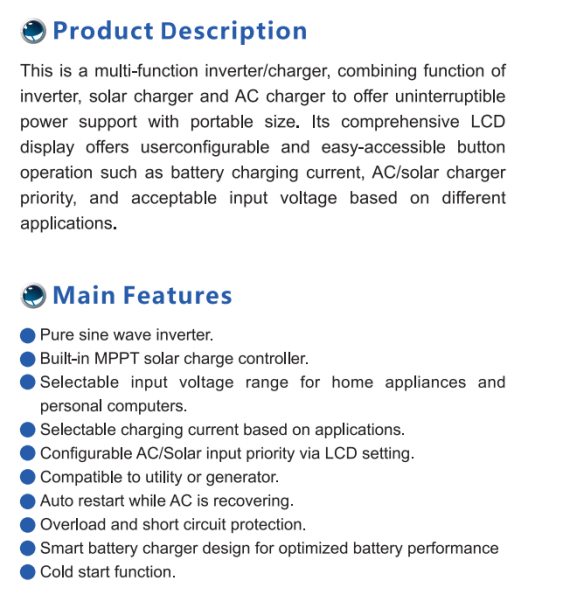

Product Description:
This hybrid inverter is an all-in-one solution that combines the functions of an inverter, solar charger, and AC charger, offering continuous power supply for homes and small businesses. It features a pure sine wave output, making it ideal for sensitive electronics, and comes with a built-in 40A MPPT solar charge controller that supports high PV input voltage ranges. The inverter is equipped with an intuitive LCD screen for user-configurable settings such as battery charging current, AC/solar charger priority, and acceptable input voltage. Its compact design includes advanced features like overload protection, short circuit protection, and auto-restart during power recovery. The product also offers remote monitoring capabilities through WiFi/GPRS, making it convenient for users to track performance in real time.
| Rated Powei 3000VA/3000W |
| INPUT |
| Voltage 230VAC |
| Selectable Voltage Range | 170-280 VAC(For Personal Computers);
90-280 VAC(For Home Appliances) |
| Frequency 50 Hz/60 Hz(Auto sensing) |
| OUTPUT |
| AC Voltage Regulation (Batt.Mode) 230VAC±5% |
| Peak Power 6000VA |
| Efficiency (Peak) 93% |
| Transfer Time | | 10 ms (For Personal Computers); |
| | 20 ms(For Home Appliances) |
Waveform Pure sine wave
BATTERY |
| Battery Voltage 24VDC |
| Floating Charge Voltage 27VDC |
| Overcharge Protection 33VDC |
| SOLAR CHARGER &AC CHARGER |
Max.ACcharge current 60A
MAX PV array power 1500W
MPPT range@operating voltage 30-115VDC |
Maximum PVarray open
circuit voltage | 145VDC | |
Max.Solar charge current
Maximum efficiency | 60A
98% | |
| PHYSICAL | | |
| Dimension,,D*W*H(mm) | 125*300*470 | |
| Net weight(kg) | 7 | |
| Communication Interface | RS232 | |
| Optional function | WIFI/4G | |
| ENVIRONMENT | |
| Humidity | 5%to 95%Relative Humidity (Non-condensing) | |
| Operating Temperature | 0℃-50℃ | | |
| Storage Temperature | -15℃-60℃ | | |
| Note:can be customized accordingto customer requirements | | | |
Application:
This hybrid inverter is designed for both residential and small commercial applications. It is ideal for off-grid solar systems or as a backup power solution in areas with unreliable grid power. The product is compatible with a wide range of appliances including personal computers, home appliances, and lighting systems, making it perfect for households, small offices, or remote locations. Its built-in MPPT solar charge controller maximizes energy production from solar panels, while the battery management system ensures optimized battery charging and extended lifespan. The product's compact design, combined with smart energy management, makes it an excellent choice for sustainable energy solutions in various settings.
Shipping Methods
Supports global air and sea shipping.
