114.72kWh To 186.42kWh Lithium Battery Storage For Large Scale Energy Management

Brand Name : GK

Model Number : CIE114

Certification : IEC62619 CE

Place of Origin : China

MOQ : 1 Unit

Price : consult prices online

Payment Terms : T/T

Packaging Details : consult online

Nominal Voltage : 409.6V to 665.6V

Capacity : 114.72kWh to 186.42kWh

Nominal Working Current : 150A

Cycle Life : ≥6500 cycles

Peak Charge/Discharge Current : 200A

Waterproof Rating : IP20

Contact Now

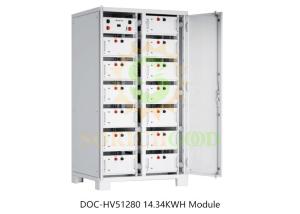

114.72kWh to 186.42kWh Lithium Battery Storage for Large-Scale Energy Management

Product Description:

This Commercial & Industrial Energy Storage System (ESS) offers a standardized, modular design aimed at high energy efficiency and long-lasting operation. With a nominal capacity ranging from 114.72kWh to 186.42kWh, the ESS uses LiFePO4 battery technology to ensure durability and safety. Each unit comes with advanced GK-developed BMS tested over 10 years for reliable performance, built-in high-performance PCS to ensure safety, and a lifespan of over 6500 cycles. The ESS features IP20 waterproof protection, making it ideal for various commercial environments. Its scalable architecture allows seamless integration with existing energy systems, supporting floor-standing installations.

Nominal Capacity	114.72kWh	143.4kWh	172.08kWh	186.42kWh
Cell Matching	128S1P	160S1P	192S1P	208S1P
Nominal Voltage	409.6V	512V	614.4V	665.6V
Working Voltage Range	176-233.6V	264-350V	440-584V	582.4-748.8V
Weight	1165kgs/2568 Ibs	1370kgs/3020 Ibs	1624.5kgs /3581 Ibs	1844.5kgs/4066 Ibs
Dimension(WDH)	120010002200mm/47.239.481.4 in
Batter Type	LiFePO4 Battery
Nominal Working Current	150A
Communication Port	CAN/RS485
Working Temperature Range	Charge:0-45℃/Discharge:-10-50℃
Waterproof	IP20
Installation Method	Floor-standing
Cycle Life	6500
Peak Charge/Discharge Current(@25℃,5S)	200A
Discharge Rate of Module	≤3.5%/month/@25℃

Application:

This ESS is designed for use in commercial and industrial environments where energy storage is crucial. Ideal for large-scale energy management, including peak shaving, load shifting, and backup power, it is suitable for applications such as:

Factories
Shopping malls
Industrial parks
Smart grid systems
Renewable energy integration Its modularity ensures easy scalability to meet growing energy demands, and the built-in BMS system provides real-time monitoring and safety control.

Shipping Methods

Supports global air and sea shipping.
